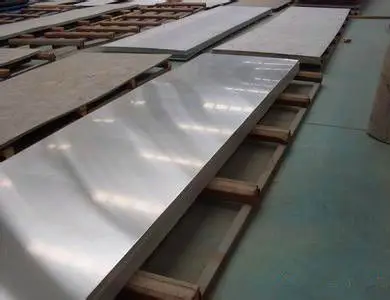

Stainless Steel Plate

Pipe Type: Stainless Steel Sheet, 304 Stainless Steel Plate, 316 Stainless Steel Plate
Application: In Chemical Industry, Coal, Oil Field Open Machine, Building Materials Heat-resistant Parts
Specification: 3/16'' Thick ~ 6'' Thick, Up to 120'' Wide
Standard: ASTM A167, ASTM A176, ASTM A240, ASTM A693, ASTM A480
Steel Grades: 300 Series Stainless, 400 Series Stainless
Process Method: Hot Rolled
Surface: Annealed, Pickling, Polished

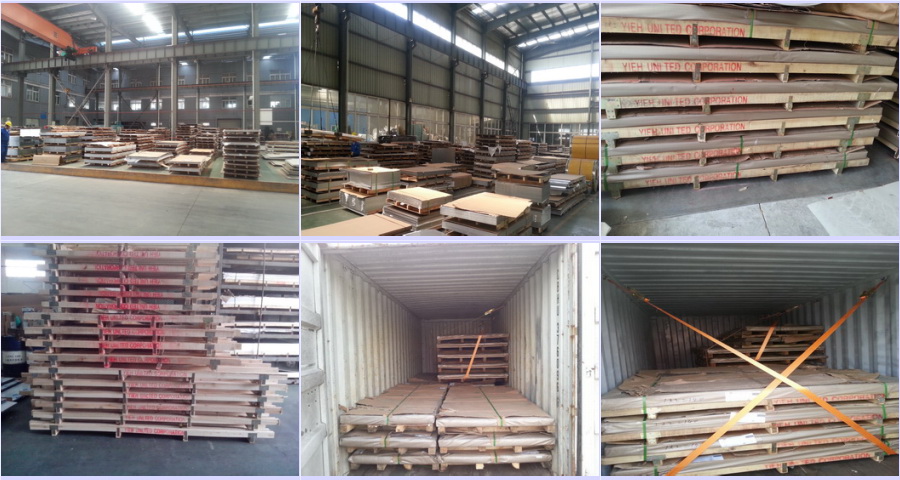

Packing: Waterproof Paper Wrapped, Packed in Wooden Cabins



·

Items

Stainless Steel Plate

Standard

GB/T14976-2002、GB13296-91、GB9948-88、ASTM/ASME A213/SA213、

ASTM/ASME A312/SA312、ASTM/ASME A269/SA269、

DIN 17458-85、DIN 17456-85、JIS G 3459、JIS G 3463、JIS G 3448、JIS G 344

Size

Sheet(0.2mm-4mm)

Slab(4mm-20mm)

Thick plate(20mm-60mm)

Special thick plate(60-115mm)

Industrial process

hot rolled,hot expanded,cold drawn,and hot galvanized



a) Outer Diameter:6-32mm:+/- 0.2mm, 32-38:+/-0.15mm,

42-60:+/-0.20mm,60mm:+/-0.25mm

Tolerance

b) Thickness: +/- 10%



c) Length: +/- 5mm

Surface

180G, 240G, 320G Satin / Hairline

400G, 600G Mirror finish

Application

steel bridge,boiler plate,shipbuilding steel,steel armor,automotive steel,

roof plate,structural Steel,electrical steel etc.

Test

Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT



Material

201

202

304

316L

430







Composition



C

≤0.15

≤0.15

≤0.08

≤0.035

≤0.12

Chemical Composition

Si

≤1.00

≤1.00

≤1.00

≤1.00

≤1.00

of Material

Mn

5.5-7.5

7.5-10

≤2.00

≤2.00

≤1.00



P

≤0.06

≤0.06

≤0.045

≤0.045

≤0.040



S

≤0.03

≤0.03

≤0.030

≤0.030

≤0.030



Cr

13-15

14-17

18-20

16-18

16-18



Ni

0.7-1.1

3.5-4.5

8-10.5







Mo







2.0-3.0





Material Item

201

202

304

316

Mechanical Property

Tensile Strength

≥535

≥520

≥520

≥520



Yield Strength

≥245

≥205

≥205

≥205



Extension

≥30%

≥30%

≥35%

≥35%



Hardness (HV)

<105

<100

<90

<90
