BackHome > Products > Seamless Carbon Steel Pipe

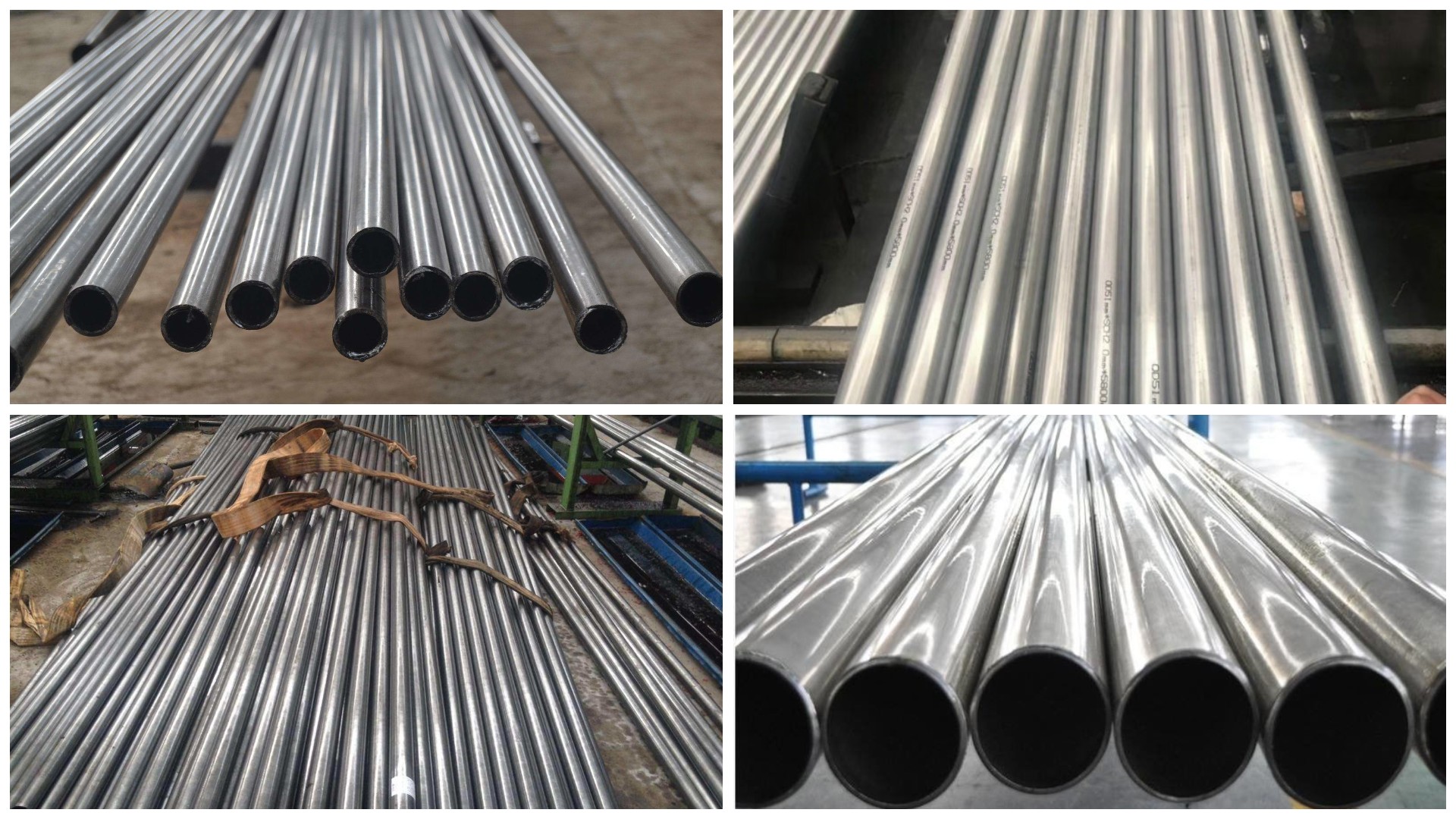

Precision Steel Pipe


Product:  Seamless Precision Pipe,precision steel pipe, Seamless Precision Tube
Application:   Used for Mechanical Structures,Hydraulic Equipment,Automative Parts
Size:  OD: 6mm-114mm
 WT: 0.5mm - 60mm
 LENGTH: 5.8/6/11.8/12m
Pipe Standard:   EN 10305  ASTM A106-2006  BS 1139
 DIN 2391    DIN 2445
Heat Treatment  NBK(+N)   GBK(+A)   BK(+C)   BKW(+LC)   BKS(+SR)


   Introduction

What is precision pipe

Precision pipe is the carbon, alloy or stainless steel pipe with high precision sizes. Usually it has been made through hot rolling or cold drawn (cold rolling) processes. So precision pipe is a kind of seamless pipe.
It is designed with several advantages:
Inside and outside surface no oxide coating;
It could bear high pressure, no leaking;
Strict less tolerance;
Surface smooth;
No reformation in cold bending, no cracks during flaring test, and flattening test.
With these advantages it is widely used for manufacturing the pneumatic parts and hydraulic components.


Thickness

0.5mm - 60mm

Alloy Or Not

Non-Alloy

Section Shape

Round 10.3mm - 610mm

Tolerance

±5%

Place of Origin

China

Payment terms

L/C T/T (30%DEPOSIT)

Application

Used for Mechanical Structures,Hydraulic Equipment,Automative Parts,structure/fluid/boiler/water and gas etc

Packing

STANDARD PACKING

Technique

Cold Drawn

Inspection

Party Inspection

Surface Treatment

oiled/black painting,NBK(+N)   GBK(+A)   BK(+C)   BKW(+LC)   BKS(+SR)

Price term

CIF CFR FOB EX-WORK

Standard

 EN 10305,,DIN 2391,DIN 2445  ASTM A106-2006, ASTM A53-2007, ANSI A210-1996, ASTM A179-1990, BS 1139, BS 6323, DIN 1626, DIN 1629/4, DIN 2391, DIN 17175, DIN2448 ,GB/T8162, Gb/t8163, JIS G3459-2004, JIS G3456-2004

Grade

STKM11A,STKM12B,STKM13A,10#, 20#, 45#, A53(A,B), A106(B,C), A179-C, ANSI4130 ,15Mo3, Q345, Q195, ST52, ST45, St37-2, ST35.4, ST35.8, ST54, 15crmo, 12Cr1MoV, API L80

Special Pipe

API Pipe

Type

Seamless Steel Pipe

Processing Service

Bending, Welding, Decoiling, Punching, Cutting

Product name

DIN2391 ST35 ST45 ST52 Cold Drawn High Precision Tube

Material

DIN2391 ST35 ST45 ST52

Keyword

DIN2391 ST35 ST45 ST52 Cold Drawn High Precision Tube

Surface

Cold finished


   Specification

Outside Diameter (mm) /

Wall Thickness (mm)

SCH

10

SCH

20

SCH

30

STD

SCH

40

SCH

60

XS

SCH

80

SCH

100

SCH

120

SCH

140

SCH

160

457

6.35

7.92

11.13

9.53

14.27

19.05

12.70

23.88

29.36

34.93

39.67

45.24

508

6.35

9.53

12.70

9.53

15.09

20.62

12.70

26.19

32.54

38.10

44.45

50.01

559

6.35

9.53

12.70

9.53



22.23

12.70

28.58

34.93

41.28

47.63

53.98

610

6.35

9.53

14.27

9.53

17.48

24.61

12.70

30.96

38.39

46.02

52.37

59.54

660

7.92

12.70



9.53





12.70











711

7.92

12.70

15.88

9.53





12.70











762

7.92

12.70

15.88

9.53





12.70











Remark: The above standard and specification are just for reference, we can also produce customized product according to customer's request.


   Standard

International standard for precision pipe is DIN 2391, which is applied with European standard.
As a matter of fact, more steel pipe standard could applied for the precision pipe. Includes DIN2445, EN10305, DIN1630, DIN1629, ASTM A106, ASTM A179, JIS G3445
Materials available with 10#, 20#, 35, 45, 40Cr, 25Mn. 37Mn5, St35(E235), St37.4, St45(E255), St52(E355) and etc.
Features
a.You can get a smaller diameter with precision steel pipe
b. High precision pipe accept small quantity for MOQ.
c. The pipes with cold drawn processes has high precision and good surface finish.
d. The transverse area of the steel pipe is more complicated.
e. Performance is superior, with higher density.


   High precision Tubes Technical Properties

Nominal size

Nominal Wall Thickness (mm)

DN

SCH

12.70

1.0, 1.2, 1.6, 2.0

13.50

1.0,1.2

16.00

1.0,1.2

17.20

1.0,1.2,1.6

19.00

1.0,1.2,1.6

20.00

1.0,1.2,1.6

21.30

1.0,1.2,1.67

22.00

1.0,1.2,1.6,2.0

25.40

1.0,1.2,1.6,2.0

26.90

1.0,1.2,1.6,2.0

28.50

1.0,1.2,1.6,2.0

30.00

1.0,1.2,1.6,2.0

31.80

1.0,1.2,1.6,2.0

33.70

1.0,1.2,1.6,2.0

38.00

1.0,1.2,1.6,2.0

42.40

1.0,1.2,1.6,2.0

44.50

1.0,1.2,1.6,2.0

48.30

1.0,1.2,1.6,2.0

51.00

51.00


  Our factory

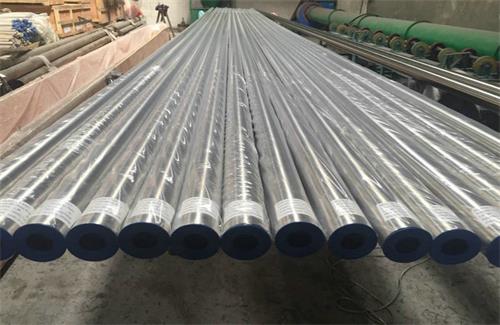

   Packing

There are probably hundreds of different methods for packing a pipe, and most of them have merit, but there are two principles that are vital for any method to work prevent rusting and Sea transportation security.Our packing can meet any needs of the customers.


  • Plastic caps plugged at the two sides of pipe ends
  • Should be avoided by the steel strapping and transport damage
  • Bundled signs should be uniform and consistent
  • The same bundle(batch) of steel pipe should be came from the same furnace.
  • The steel pipe has the same furnace number, the same steel grade, the same specifications.


Looking forward to your favourable inquiry!

  Manufacture Process

   Equipment
