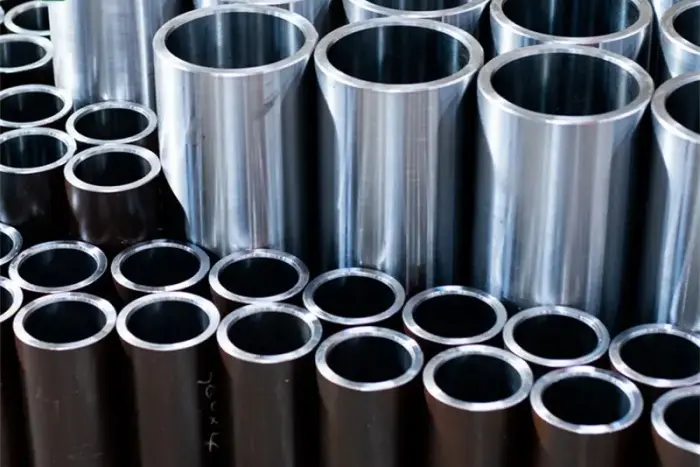

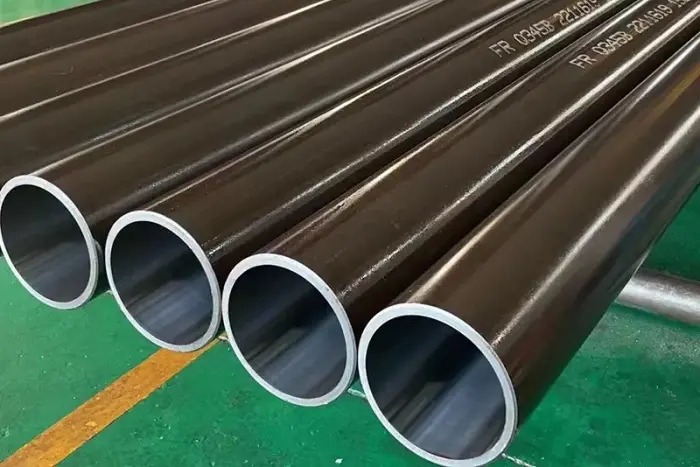

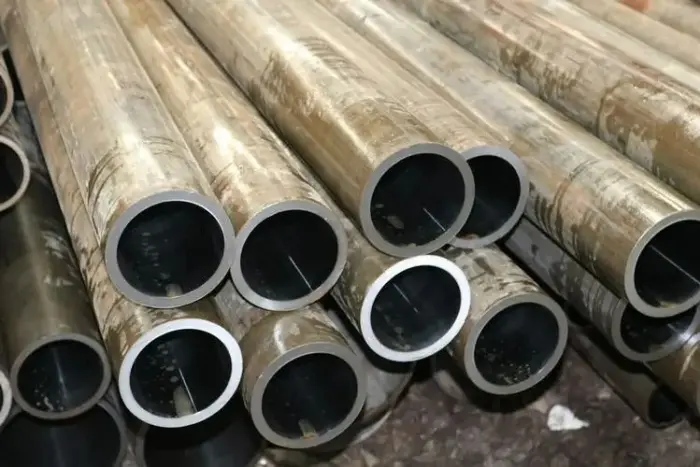

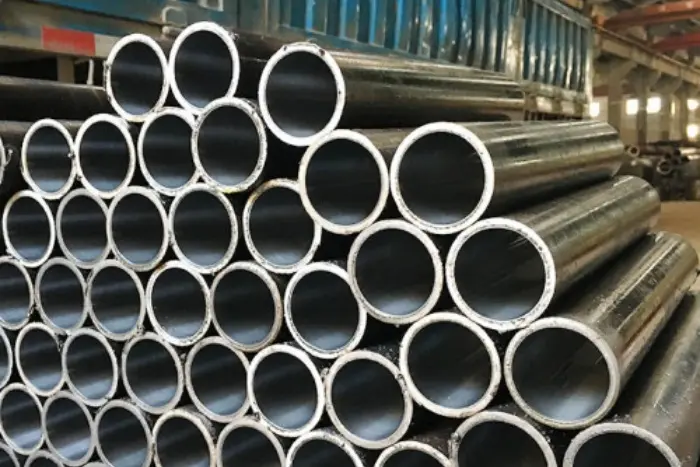

Product: |
honed Tube,Carbon Seamless Honed Steel Tube,Cold Drawn Carbon Steel Seamless Honed Tube, Hydraulic Honed Tubing |
|
Application: |
Construction structure, water transport and sewage treatment, thermal industry, buildings etc |
|
Size: |
20mm – 1500mm |
|
Length: |
max 16m |
|
Straightness: |
≤ 0.5/1000 |
|
Roughness: |
0.2-0.4 u |
|
Tolerance |
Tolerance EXT: DIN2391, EN10305, GB/T 1619 Tolerance INT:H7,H8,H9 |
|
Protection: |
Anti-rust oil on inside and outside surface, plastic caps in both ends. |
|
Packing |
Bundle with steel strip and PE sheet or wooden case
|
Introduction
Product Type: Carbon Seamless Honed Steel Tube,Cold Drawn Carbon Steel Seamless Honed Tube,Honed Tube Carbon Seamless Saw Steel Pipe Tube
Material: ST52,CK45,4140,SCM440,16Mn,42CrMo,E355,Stainless Steel 304/316,Duplex 2205,etc.
Delivery Condition: BK, BK+S, GBK, NBK
ID Size : 20mm – 1500mm
Length: max 16m
Type: Seamless, Hot Rolled, Cold Rolled, Cold Drawn
Straightness: ≤ 0.5/1000
Roughness: 0.2-0.4 u
Tolerance EXT: DIN2391, EN10305, GB/T 1619
Tolerance INT: H7,H8,H9
Protection: Anti-rust oil on inside and outside surface, plastic caps in both ends.
Packing: Bundle with steel strip and PE sheet or wooden case.
Honed Tube Chemical composition
|
Technicial Specifications |
|||
|
Steel Class/Standard |
E355 (EN 10305-1) /St52-3 (DIN 2391) |
P |
S |
|
Heat Treatment
|
+SR (EN 10305-1) /BK+S (DIN 2391) |
≤ 0.025 |
≤ 0.010 |
|
Tolerance Class |
EN ISO 286-2 (ISO H8) |
≤ 0.025 |
≤ 0.010 |
|
Inner Surface Sensitivity |
Ra < 0,2 μm, Rt < 3 μm. |
≤ 0.020 |
≤ 0.010 |
|
Divergence |
0,5 mm:1000 mm/1 mm:1000 mm |
≤ 0.020 |
≤ 0.010 |
|
Production Length |
5-9 m |
≤ 0.025 |
≤ 0.0 |
|
Inner Surface Rigidity |
HB 190-245 |
|
|
Status Of Heat Treatment
|
EN 10305-2 |
Symbol Definitions |
DIN 2391 (Eski norm) |
|
+SR |
Cold Drawn/Normalized |
BK+S |
Chemical Composition And Mechanical Properties|
Standart |
Steel Class |
Chemical Composition (%) |
Mechanical Properties |
|||||||
|
C [max] |
Si [max] |
Mn [max] |
P [max] |
S [max] |
Yield Strength/Re |
Tensile Strength/Rm |
Elongation/A5 |
|||
|
D ≤ 16mm Mpa [min] |
D > 16 mm Mpa [min] |
Mpa [min] |
% [min] |
|||||||
|
EN10305-1 |
E355 |
0,20 |
0,50 |
1,55 |
0,020 |
0,010 |
520 |
490 |
600 |
15 |
Chemical Composition And Mechanical Properties|
Standard |
Steel Class |
Chemical Composition (%) |
Mechanical Properties |
||||||
|
C [max] |
Si [max] |
Mn [max] |
P [max] |
S [max] |
Yield Strength/Re |
Tensile Strength/Rm |
Elongation/A5 |
||
|
Mpa [min] |
Mpa [min] |
% [min] |
|||||||
|
EN10305-2 |
E355 |
0,20 |
0,50 |
1,55 |
0,020 |
0,010 |
520 |
600 |
22 |
Manufacture Process
Equipment
