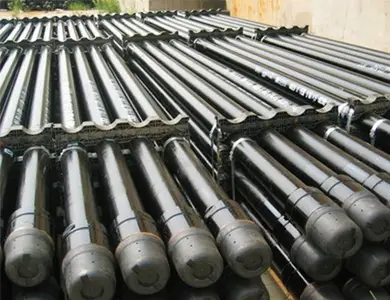

Drill Pipe

Product:	Drill Pipe
Application:	Used for Mine, water well drilling, well drilling, coal and fore poling
Size:	OD: 2-3/8" to 7-5/8"
	WT: 6.45-12.7mm
	LENGTH: R1, R2, R3
Pipe Standard:	API 5DP E75, X95, G105, S135
Upset Style:	IU, EU, IEU
Connection:	NC26, NC31, NC38, NC40, NC46, NC50, 5 1/2FH.6 5/8FH.
Internal coating	TK34,TC2000, Arnco 100XT, 200XT, 300XT

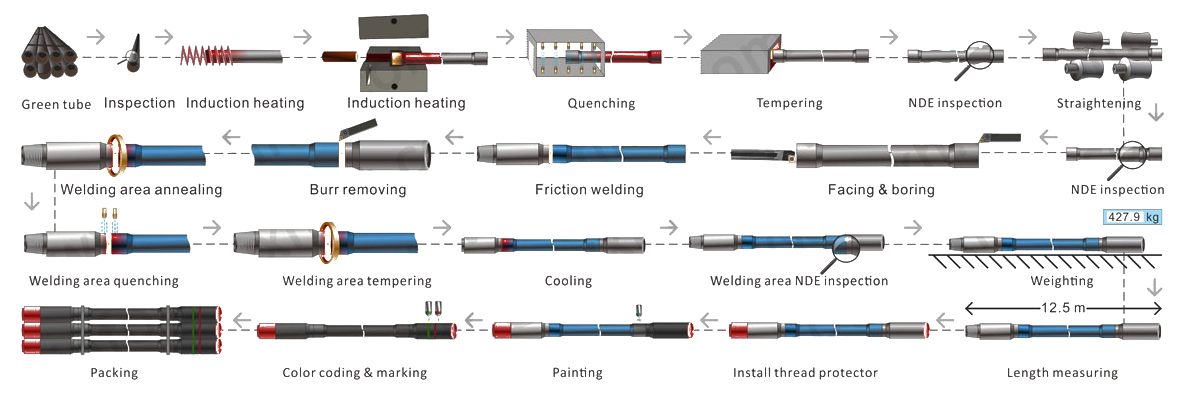

Introduction

A drill pipe is a seamless steel pipe that composes around 95% of the length of a drill string. For clarity, a drill string is what is used to actually drill into the ground to extract resources. The drill pipe is hollow, which allows drilling fluid to flow freely throughout the pipe and the pumping process to be completed successfully.

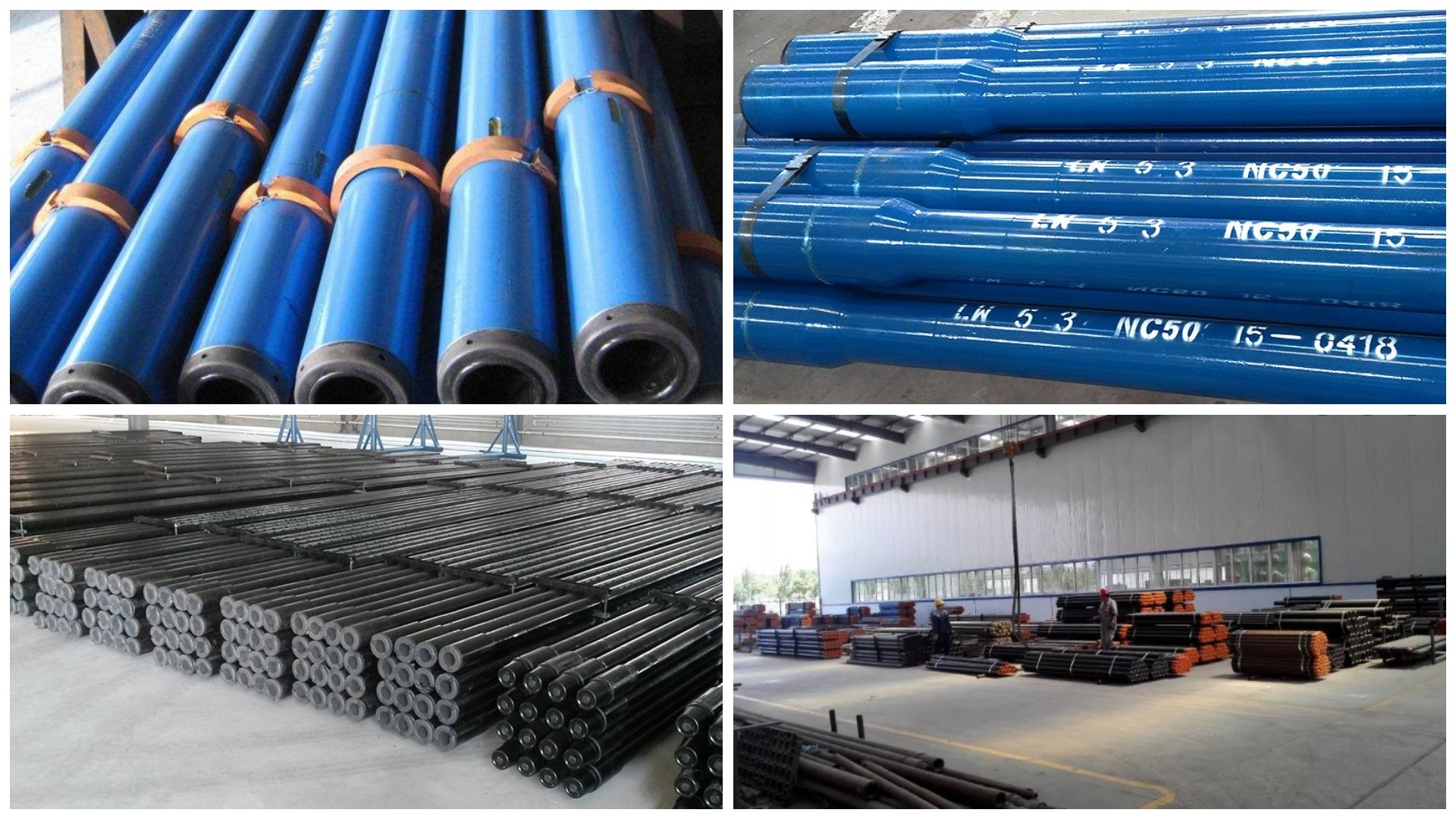

Drill Pipe
2-3/8" to 7-5/8" OD, Range 2 and 3

Heavy Weigh
2-3/8" to 6-5/8" OD, Range 2 and 3

Drill Collars
2-7/8" to 14"

Grades: E75, X95, G105, S135
Connection threads:NC26, NC31, NC38, NC40, NC46, NC50, 5 1/2FH.6 5/8FH.

Internal Upset: IU, EU, IEU

Heavy weight drill pipe is a medium-weight drilling pipe, (referred standards in API SPEC 7-1). It has bigger wall thickness than common drilling pipe and smaller than drill collar.

Specification

Drill pipe diameter	Drill pipe ID	Drill pipe weight
2-3/8 inch	1.815 inch	6.65 lb/ft
2-7/8 inch	2.151 inch	10.40 lb/ft
3-1/2 inch	2.764 inch, 2.602 inch	13.30 lb/ft, 15.50 lb/ft
4 inch	3.340 inch, 3.240 inch	14.00 lb/ft, 15.70 lb/ft
4-1/2 inch	3.826 inch, 3.640 inch	16.60 lb/ft, 20 lb/ft
5 inch	4.726 inch, 4.000 inch	19.50 lb/ft, 25.60 lb/ft
5-1/2 inch	4.778 inch, 4.670 inch	21.90 lb/ft, 24.70 lb/ft
6-5/8 inch	5.965 inch, 5.901 inch	25.20 lb/ft, 27.70 lb/ft

Standard

Standard	API 5D
Grade	E-75, X-95, G-105, S-135
Application:	For well drilling and borehole drilling
Length ranges	Range 1: 18 ft. to 22 ft. Range 2: 27 ft. to 30 ft. Range 3: 38 ft. to 45 ft.
Types	Drill pipe borehole drilling Heavy weight drill pipe Tool joint Pup joint

Mechanical Properties API Steel Drill Pipe

Grade	E-75	X-95	G-105	S-135
Yield Strength (minimum psi)	75,000	95,000	105,000	135,000
Yield Strength (maximum psi)	105,000	125,000	135,000	165,000
Tensile Strength (minimum psi)	100,000	105,000	115,000	145,000

Chemical composition requirements

Chemical composition requirements
Pipe body	Phosphorus max. %	Sulfur max. %
Pipe body grade E	0.030	0.020
Pipe body grades X, G and S	0.020	0.015
Tool joint	0.020	0.015
