| Product: | galvanized pipe, galvanized steel pipe, pre galvanized steel pipe, pre-galvanized steel pipe |
| Application: | Used for transporting low pressure liquid, gas and heating. |
| Size: | OD: 21.3mm ~ 610mm |
| WT: 0.5mm ~ 20mm | |
| LENGTH: 0.3mtr ~ 18mtr, Ramdon Length, Fixed Length, SRL, DRL | |
|
Standard |
GB/T 3091 Q195/Q215/Q235/Q345, BS 1387, EN 39, EN 1139 S235JR/S275JR, ASTM A53 GR. A/B/C, JIS G3444 STK 400/STK 500 |
|
Pipe tape |
Electric Resistance Welded Steel Pipe (Round/Square/Rectangular) |
|
End |
Square Cut/Threaded, Burr Removed |
|
Zinc Coating |
10~50 g/m2 |
| Packing | Steel Strips bundled, Plastic Caps plugged, Waterproof Paper wrapped etc. |
Introduction
In addition to this, galvanized pipe also provides:
Features:
Galvanized steel pipe coating types
· Hot dipped galvanized steel pipe
· Cold galvanized pipe or electric galvanized pipe
· Zinc coated galvanized pipe
· Powder coated galvanized steel pipe
· Epoxy coating galvanized pipe
· PVC coated galvanized pipe
Standard
EN ISO 1461
Nominal diameter
1/2" - 4" inches
Nominal wall thickness
2.0 mm - 4.5mm
Test pressure index Dia
10.2 mm - 168.3 mm 3 MPa
177.8mm - 323.9 mm 5 MPa
Zinc coated galvanized pipe layer thickness
For Hot galvanized : 35μm - 650μm
For Cold galvanized: 5-15μm
Seamless galvanized carbon steel pipes process
· Finished pickling
· washing
· plating
· drying
· hanging plating
· cooling
· medicine
· cleaning
· grinding
· and hot galvanized finish
Types of Galvanizing coating appearanc e
· Shiny
· Spangled
· Matte grey
· Shiny and dull
Test Reports
Laboratory testing, magnetic gauge test reports
Specification
PRODUCT
THICKNESS (MM)
LENGTH
STANDARDS
Galvanised Pipes
upto 9mm
Random Length of 4 to 7 meters unless specified otherwise
IS : 1239 [PART1] / 1990
|
ERW CONSTRUCTION HOT-DIPPED GALVANIZED STEEL PIPES |
||||||||||
|

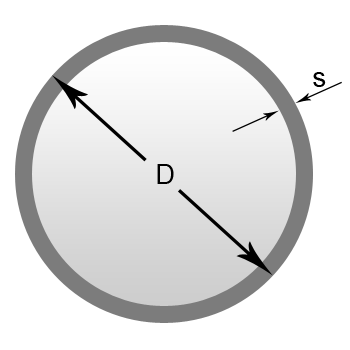

EXTERNAL DIAMETER (D) |
WALL THICKNESS (s) mm WEIGHT kg/m |
|||||||||
|
Φ |
inches |
mm |
1.80 |
2.00 |
2.30 |
2.50 |
3.00 |
3.20 |
3.60 |
4.00 |
|
Φ21 |
1/2” |
21.3 |
0.87 |
0.95 |
1.08 |
1.16 |
1.35 |
1.43 |
1.57 |
1.71 |
|
Φ26 |
3/4" |
26.9 |
1.11 |
1.23 |
1.40 |
1.50 |
1.77 |
1.87 |
2.07 |
2.26 |
|
Φ33 |
1” |
33.7 |
1.42 |
1.56 |
1.78 |
1.92 |
2.27 |
2.41 |
2.67 |
2.93 |
|
Φ42 |
1 1/4” |
42.4 |
1.80 |
1.99 |
2.27 |
2.46 |
2.91 |
3.09 |
3.44 |
3.79 |
|
Φ48 |
1 1/2” |
48.3 |
2.06 |
2.28 |
2.61 |
2.82 |
3.35 |
3.56 |
3.97 |
4.37 |
|
Φ60 |
2” |
60.3 |
2.60 |
2.88 |
3.29 |
3.56 |
4.24 |
4.51 |
5.03 |
5.55 |
|
Φ76 |
2 1/2” |
76.1 |
3.30 |
3.65 |
4,19 |
4.54 |
5.41 |
5.75 |
6.44 |
7.11 |
|
Φ88 |
3” |
88.9 |
3.87 |
4.29 |
4.90 |
5.33 |
6.36 |
6.76 |
7.57 |
8.37 |
|
Φ114 |
4” |
114.3 |
4.98 |
5.54 |
6.34 |
6.89 |
8.23 |
8.77 |
9.83 |
10.88 |
Our factory
Packing

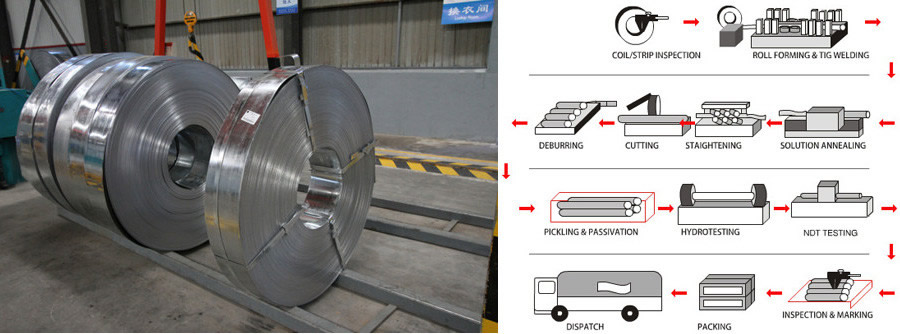

Manufacture Process
--- Cooling --- Passivation and Rising --- Unloading --- Inspection and Trimming --- Type Identification --- Packaging and Storing and Transportation
Equipment
If you have any inquiries and questions, please contact United Steel Industry Co.,Ltd
at any time. Thanks in advance. Welcome! Email :Sales@united-steel.com
