titanium pipe fittings


Product:

titanium fittingstitanium pipe fittings Titanium Tees,Titanium reducers

Application:

 Used for Oil/Gas/Water transmission,chemical plant,aerospace industry



Dia5.0-300*≤6000mm

Pipe Standard:

Gr1Gr2Gr3Gr4Gr5Gr6Gr7Gr9Gr11Gr12Gr23,etc

 Material

Pure titanium & Titanium alloy

   Introduction

TYPE

NOMINAL SIZE

(INCHES)



THICKNESS

ASTM SPEC

90° Elbows - Long Radius

1/2" to 24"

Sch. 10, 40

B 363-WPT2

90° Elbows - Short Radius

1" to 24"

Sch. 10, 40

B 363-WPT2

45° Elbows - Long Radius

1/2" to 24"

Sch. 10, 40

B 363-WPT2

Concentric Reducers

1" x 1/2" up to 12" x 10"

Sch. 10, 40

B 363-WPT2

Eccentric Reducers

1" x 1/2" up to 12" x 10"

Sch. 10, 40

B 363-WPT2

Long Branch Straight Tee

1/2" to 24"

Sch. 10, 40

B 363-WPT2

Short Branch Straight Tee

1/2" to 24"

Sch. 10, 40

B 363-WPT2

Reducing Tees

1" x 1" x 1/2" up to 20" x 20" x 16"

Sch. 10, 40

B 363-WPT2

WN & Lap Joint Stubends

1" to 24"

Sch. 10, 40

B 363-WPT2

Couplings (Half and Full)

1/2" to 2"



B 348

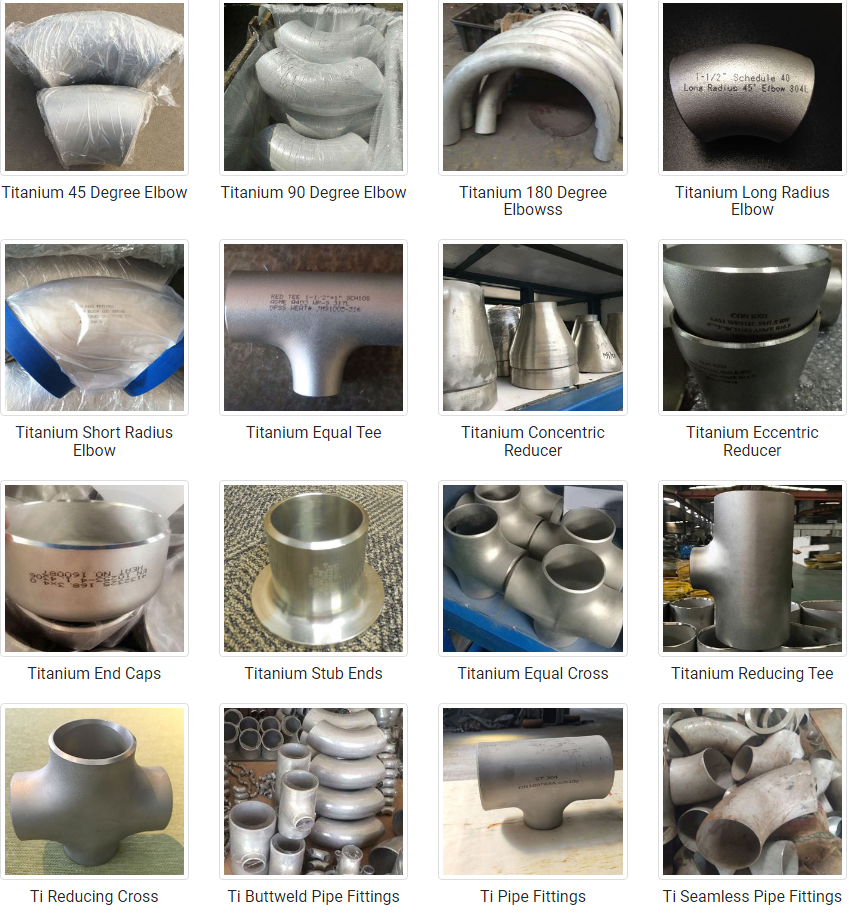

     Fitting Types

Fitting Types



Butt Weld Fittings


Long & Short Radius Elbows
Long & Short Return Elbows
Concentric & Reducing Tees
Equal & Reducing Tees
Stub Ends
End Caps


Pressure Fittings


150#
300#
3000#
6000#



Socket Weld Fittings
Threaded Fittings



Elbows
Tees
Couplings
End Caps
Concentric & Eccentric Swage Nipples






   Standard

Standard



ANSI B.31.10

Code for Pressure Piping

ANSI B.31.3

Petroleum Refinery Piping

ANSI B.31.4

Oil Transportation Piping

ANSI B.31.5

Refrigeration Piping Systems

ANSI B.31.7

Nuclear Power Piping

ANSI B.31.8

Gas Transmission/Distribution Piping

ANSI B.36.10

Standard for Wrought Steel Pipe

ANSI B.36.19

Standard for Stainless Steel Pipe

ANSI B.16.10

Valve Dimension Face & Ends

ANSI B.16.11

Forged Fittings Socket Weld & Threaded


  Titanium Pipe Fittings Dimensions

NPS

O.D.

90 Degree Elbow

45 Degree Elbow

180 Degree Return

(inch)



Long Radius Elbow

Short Radius

Long Radius Elbow

Long Radius Elbow



(millimeter)

(inch)

Center to Face
(inch)

Center to Face
(inch)

Center to Face
(inch)

Radius
(inch)

Center to Center
(inch)

Back to face
(inch)

1/2

21.3

0.840

1 1/2

5/8



2

1 7/8

3/4

26.7

1.050

1 1/8

7/16



2 1/4

1 11/16

1

33.4

1.315

1 1/2

1

7/8



3

2 3/16

1 1/4

42.2

1.660

1 7/8

1 1/4

1



3 3/4

2 3/4

1 1/2

48.3

1.900

2 1/4

1 1/2

1 1/8

3

4 1/2

3 1/4

2

60.3

2.375

3

2

1 3/8

4

6

4 3/16

2 1/2

73.0

2.875

3 3/4

2 1/2

1 3/4

5

7 1/2

5 3/16

3

88.9

3.500

4 1/2

3

2

6

9

6 1/4

3 1/2

101.6

4.000

5 1/4

3 1/2

2 1/4

7

10 1/2

7 1/4

4

114.3

4.500

6

4

2 1/2

8

12

8 1/4

5

141.3

5.563

7 1/2

5

3 1/8

10

15

10 5/16

6

168.3

6.625

9

6

3 3/4

12

18

12 5/16

8

219.1

8.625

12

8

5

12

24

16 5/16

10

273.1

10.750

15

10

6 1/4

15

30

20 3/8

12

323.9

12.750

18

12

7 1/2

18

36

24 3/8


NPS

O.D.

Pipe End Caps

Straight Tee

Straight Cross

Long / Short Stub Ends

(inch.)

(millimeter)

(inch.)

Length
(inch.)

Center to End
(inch.)

Center to End
(inch.)

Lap Diameter
(inch.)

Long Length
(inch.)

Short Length
(inch.)

1/2

21.3

0.840

1

1

1 3/8

3

2

3/4

26.7

1.050

1

1 1/8

1 11/16

3

2

1

33.4

1.315

1 1/2

1 1/2

1 1/2

2

4

2

1 1/4

42.2

1.660

1 1/2

1 7/8

1 7/8

2 1/2

4

2

1 1/2

48.3

1.900

1 1/2

2 1/4

2 1/4

2 7/8

4

2

2

60.3

2.375

1 1/2

2 1/2

2 1/2

3 5/8

6

2 1/2

2 1/2

73.0

2.875

1 1/2

3

3

4 1/8

6

2 1/2

3

88.9

3.500

2

3 3/8

3 3/8

5

6

2 1/2

3 1/2

101.6

4.000

2 1/2

3 3/4

3 3/4

5 1/2

6

3

4

114.3

4.500

2 1/2

4 1/8

4 1/8

6 3/16

6

3

5

141.3

5.563

3

4 7/8

4 7/8

7 5/16

8

3

6

168.3

6.625

3 1/2

5 5/8

5 5/8

8 1/2

8

3 1/2

8

219.1

8.625

4

7

7

10 5/8

8

4

10

273.1

10.750

5

8 1/2

8 1/2

12 3/4

10

5

12

323.9

12.750

6

10

10

15

10

6

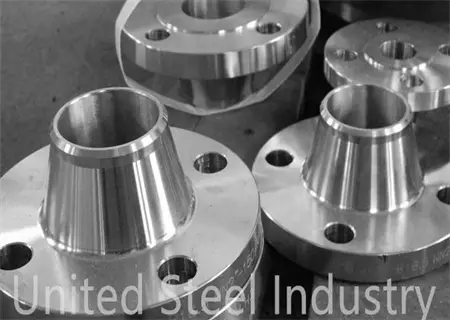

  Our factory

Looking forward to your favourable inquiry!

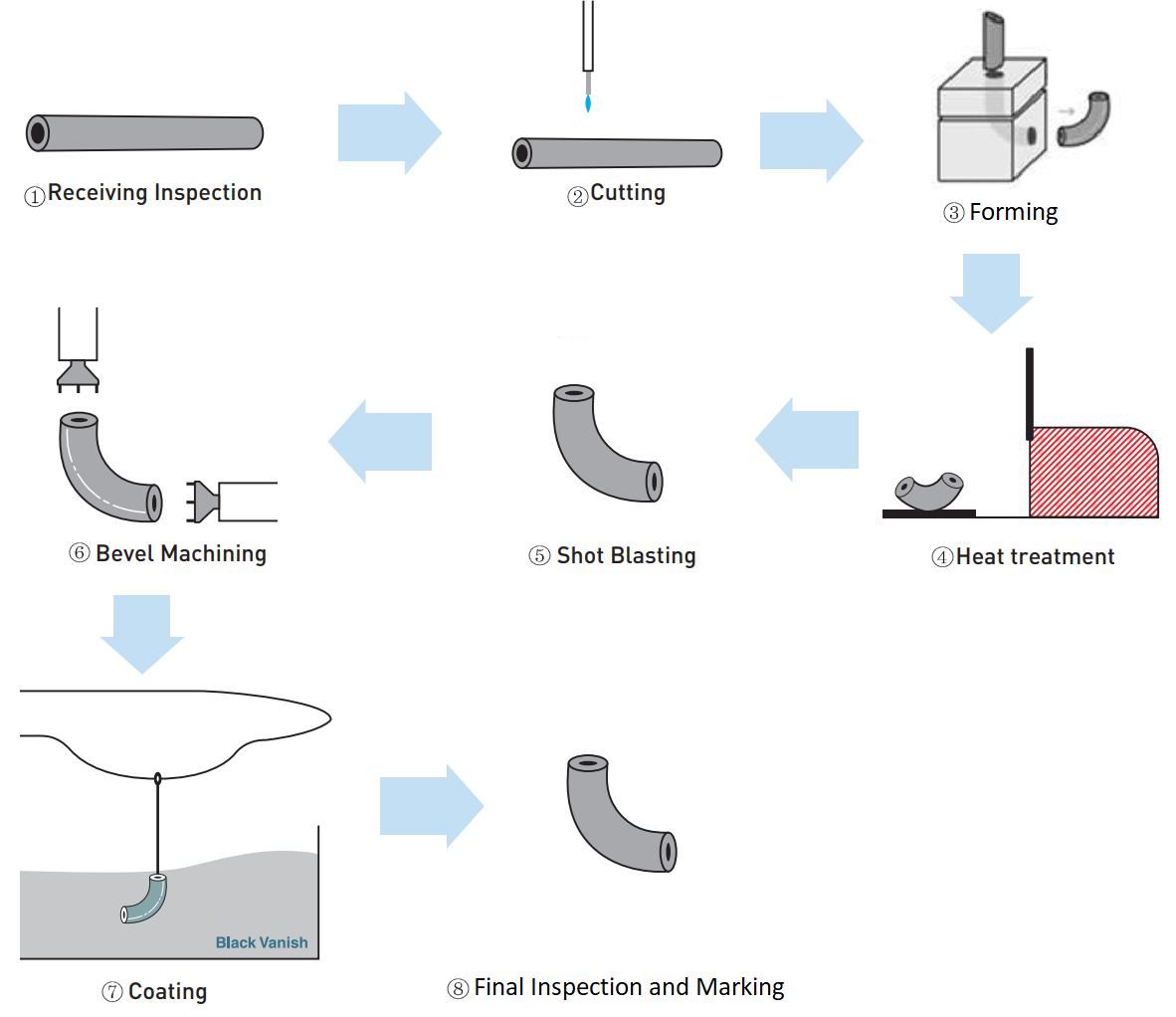

  Manufacture Process
