ERW Steel Pipe


Product:  ERW (Electric Resistance Welded ) Steel Pipe, ERW Carbon Steel Pipe
Application:   Used for Oil/Gas/Water transmission,Machinery Manufacturing
Size:  OD: 21.3-660mm
 WT: 1.0-20mm
 LENGTH:  3-12m, or according to customer’s requirement
Pipe Standard:  API 5L  PSL1/PSL2    Gr.A,Gr.B,X42,X46,X52,X56,X60,X65,X70
ASTM A53: GR.A, GR.B, ASTM A500 JIS G3466
ASTM A252  ASTM A178
AN/NZS 1163   AN/NZS 1074
EN10219-1        EN10217-1,S275, S275JR, S355JRH, S355J2H


   Introduction

ERW Steel Pipe(Electric Resistance Welded Pipe), A53 ERW Pipe, ERW Carbon Steel Pipe

Product Details of ERW steel pipe

Pipe End: square ends (straight cut, saw cut, and torch cut). or beveled for welding, beveled,

Surface: Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy,  Fusion Bond Epoxy, 3-layers PE)

Packing: Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.

Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test,  Hardness Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, NDT TEST ( ET TEST, RT TEST, UT TEST)

For ERW Line Pipe For ERW Casing
For ERW Structure Tube
For High pressure and high temperature


   Size
Out Diameter:21.3-660mm
Wall Thickness: 1.0-20mm
Length : 3-12m, or according to customer’s requirement
End : Plain End, Beveled End, Treaded


   Standard

ASTM 5L, ASTM A53, ASTM A178, ASTM A500/501, ASTM A691, ASTM A252, ASTM A672, EN 10217
Steel Grade:
API 5L: PSL1/PSL2  Gr.A, Gr.B, X42, X46, X52, X56, X60, X65, X70
ASTM A53: GR.A, GR.B,ASTM A500 JIS G3466
EN: S275, S275JR, S355JRH, S355J2H,EN10219-1 ,EN10217-1
GB: Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360-L555





   Specification

Out diameter

Sch 5

Sch 10

Sch 40

Inch

mm

Thickness

Kg/mtr

Thickness

Kg/mtr

Thickness

Kg/mtr

1/2"

21.3

1.65

0.81

2.11

1.01

2.77

1.29

3/4"

26.7

1.65

1.03

2.11

1.30

2.87

1.71

1"

33.4

1.65

1.31

2.77

2.12

3.38

2.54

1 1/4"

42.2

1.65

1.93

2.77

3.15

3.68

4.11

1 1/2"

48.3

1.65

1.93

2.77

3.15

3.68

4.11

2"

60.3

1.65

2.42

2.77

3.98

4.81

5.31

3"

88.9

2.11

4.58

3.05

6.54

5.49

11.45

3 1/2"

101.6

2.11

5.25

3.05

7.52

5.74

13.77

4"

114.3

2.11

5.25

3.05

7.52

5.74

13.77

5"

141.3

2.77

9.50

3.40

11.74

6.55

22.10

6"

168.3

2.77

11.47

3.40

14.04

7.11

28.68

8"

219.1

2.77

14.99

3.76

20.25

8.18

43.16


   Chemical Analysis and Mechanical Properties

Chemical Analysis and Mechanical Properties

Standard

Class

Grade

Chemical Analysis(%)

Mechanical Properties(min)(Mpa)

C

Mn

P

S

Tensile Strength

Yield Strength

API 5L

PSL1

B

0.26

1.2

0.03

0.03

414

241

X42

0.26

1.3

0.03

0.03

414

290

X46

0.26

1.4

0.03

0.03

434

317

X52

0.26

1.4

0.03

0.03

455

359

X56

0.26

1.4

0.03

0.03

490

386

X60

0.26

1.4

0.03

0.03

517

414

X65

0.26

1.45

0.03

0.03

531

448

X70

0.26

1.65

0.03

0.03

565

483

PSL2

B

0.22

1.2

0.025

0.015

414

241

X42

0.22

1.3

0.025

0.015

414

290

X46

0.22

1.4

0.025

0.015

434

317

X52

0.22

1.4

0.025

0.015

455

359

X56

0.22

1.4

0.025

0.015

490

386

X60

0.22

1.4

0.025

0.015

517

414

X65

0.22

1.45

0.025

0.015

531

448

X70

0.22

1.65

0.025

0.015

565

483

X80

0.22

1.85

0.025

0.015

621

552

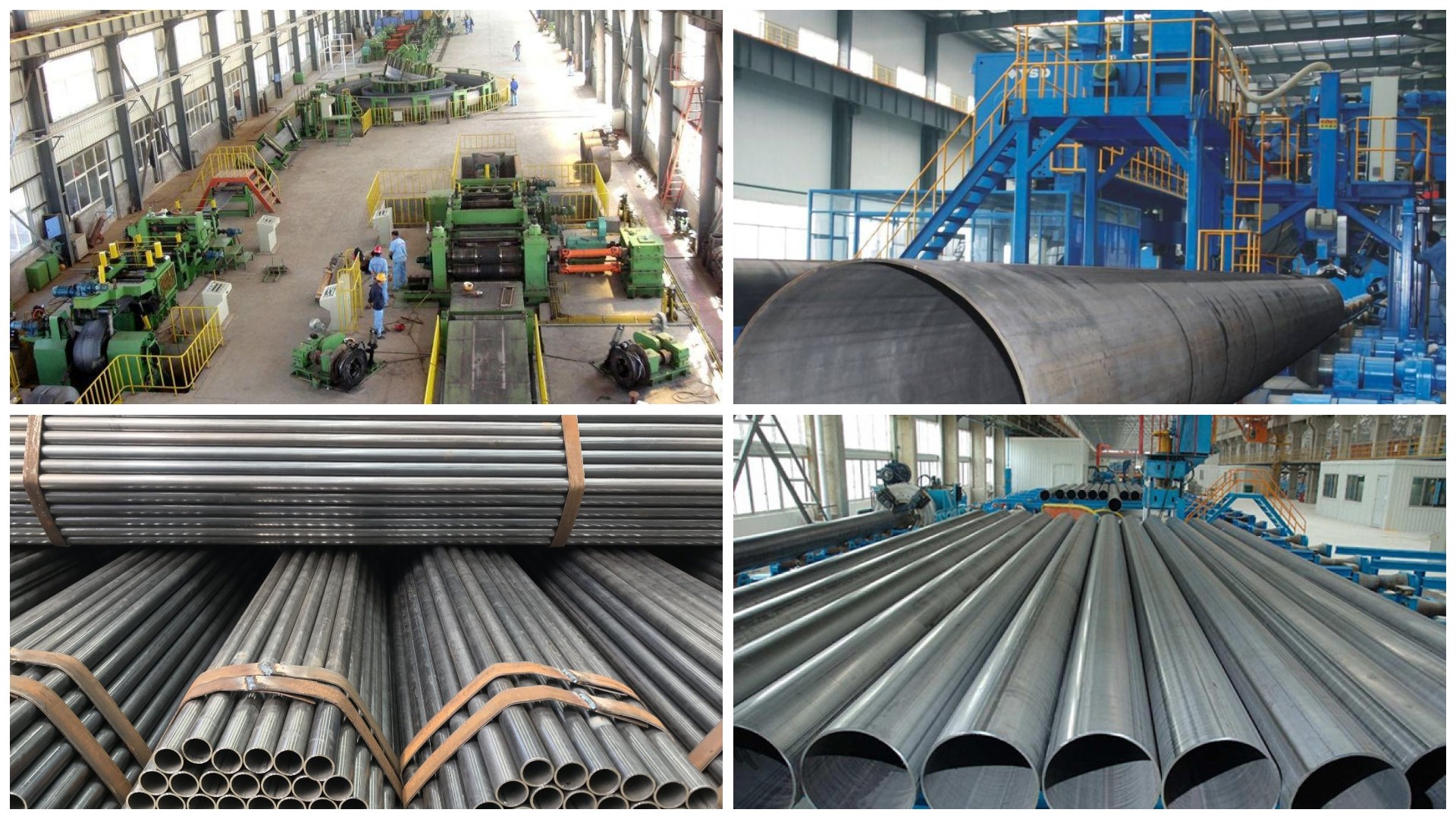

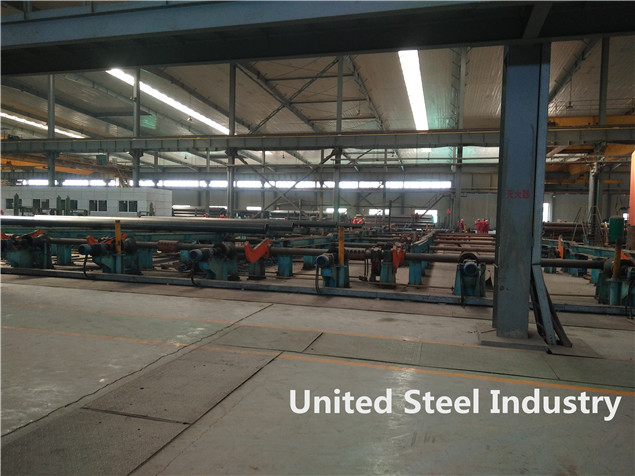

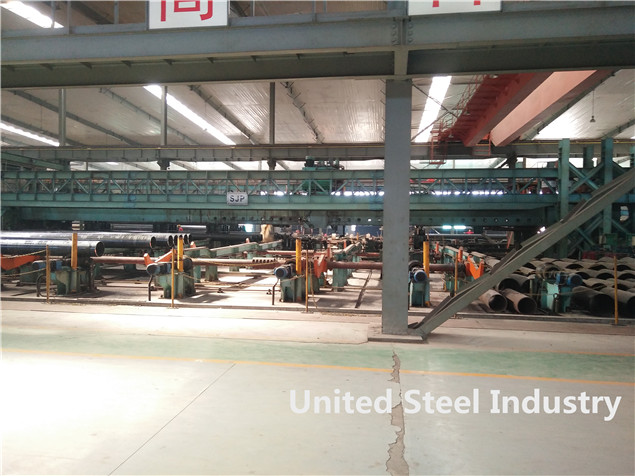

  Our factory

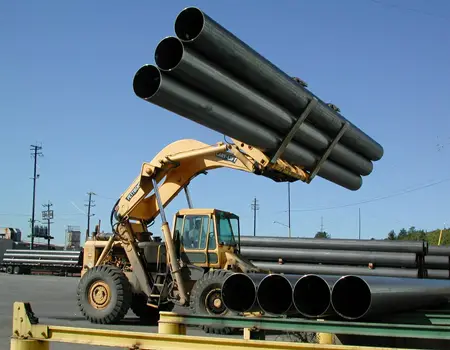

  Packing



  • 1- Plastic caps plugged at the two sides of pipe ends
  • 2- Should be avoided by the steel strapping and transport damage
  • 3- Bundled signs should be uniform and consistent
  • 4- The same bundle(batch) of steel pipe should be came from the same furnace.
  • 5- The steel pipe has the same furnace number, the same steel grade, the same specifications.


Looking forward to your favourable inquiry!

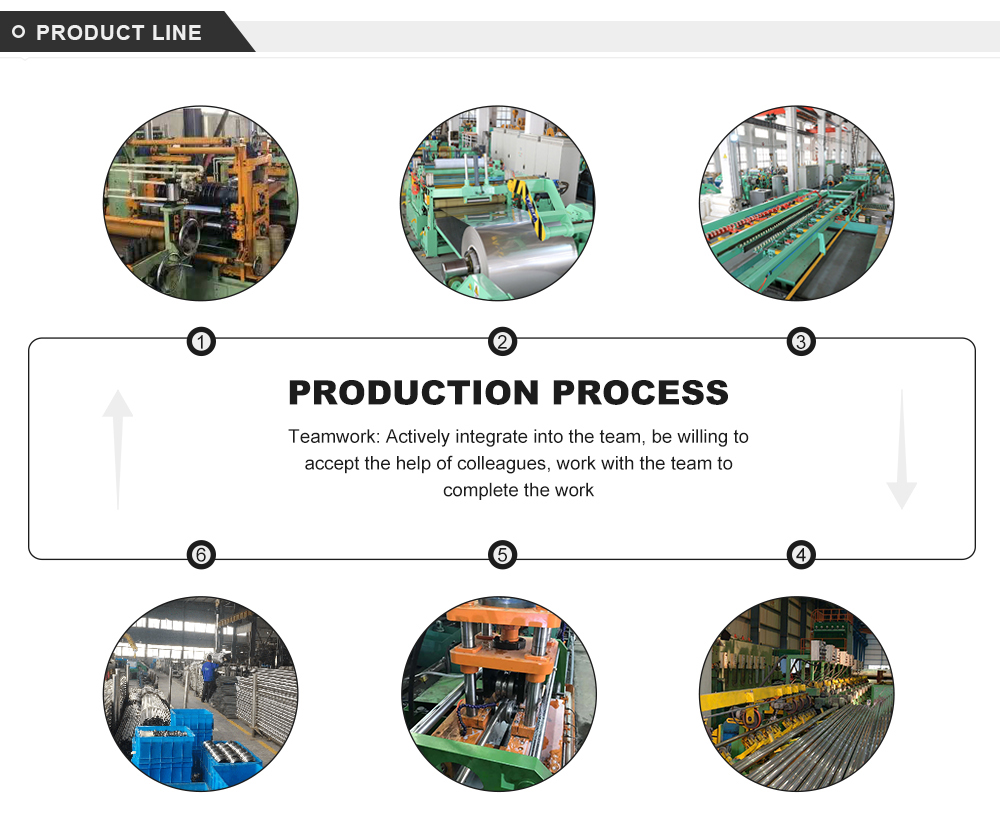

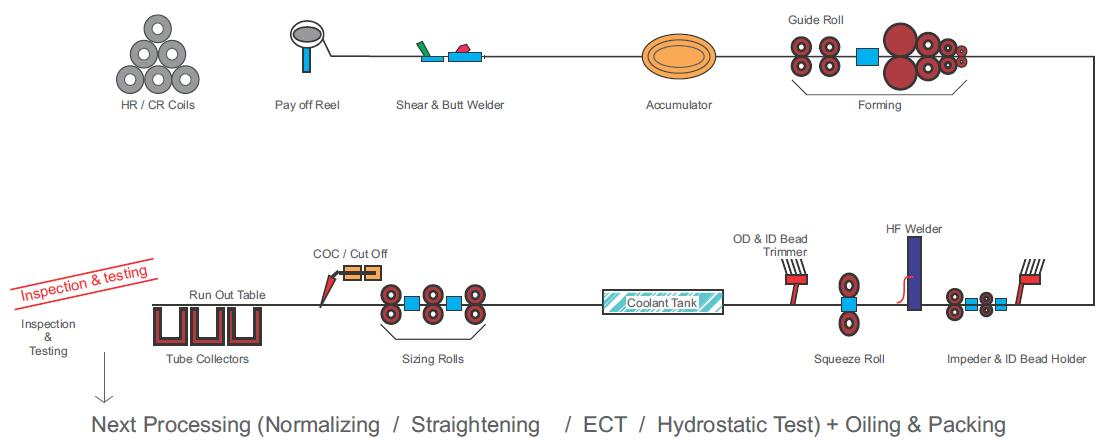

  Manufacture Process

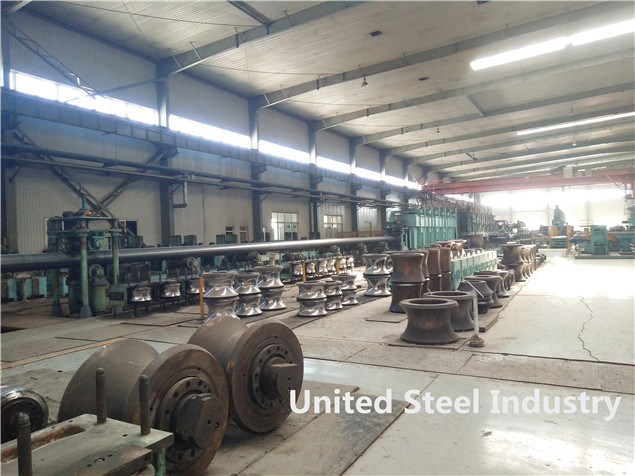

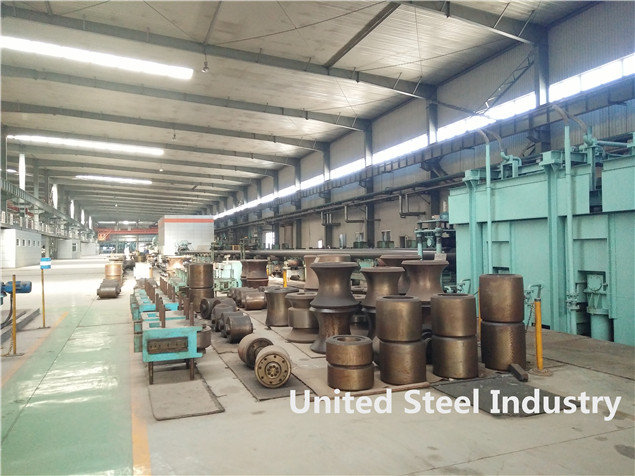

  Equipment
