| Product: | Concrete Coated Pipe, Concrete Weight Coating |
| Application: | Used for natural gas, petroleum, water & sewage, and pipe systems |
| Size: | OD: 219mm~2020mm |
| WT: 5mm~25mm | |
| LENGTH: 4mtr, 6mtr, 12mtr, 18mtr, 21mtr | |
|
Standard |
DIN 30670, DIN 30671, DIN 30678, SY/T0413-2002 etc. |
|
Pipe tape |
Submerged Arc Welded (LSAW/SSAW), Electric Resistance Welded |
|
End |
Plain End/Bevelled End, Burr Removed |
|
Coating Thickness |
Three Layer Polyethylene Coating (2mm~4.5mm) |
| Packing | Waterproof Paper wrapped, Steel Strips bundled, two tags on each bundle |

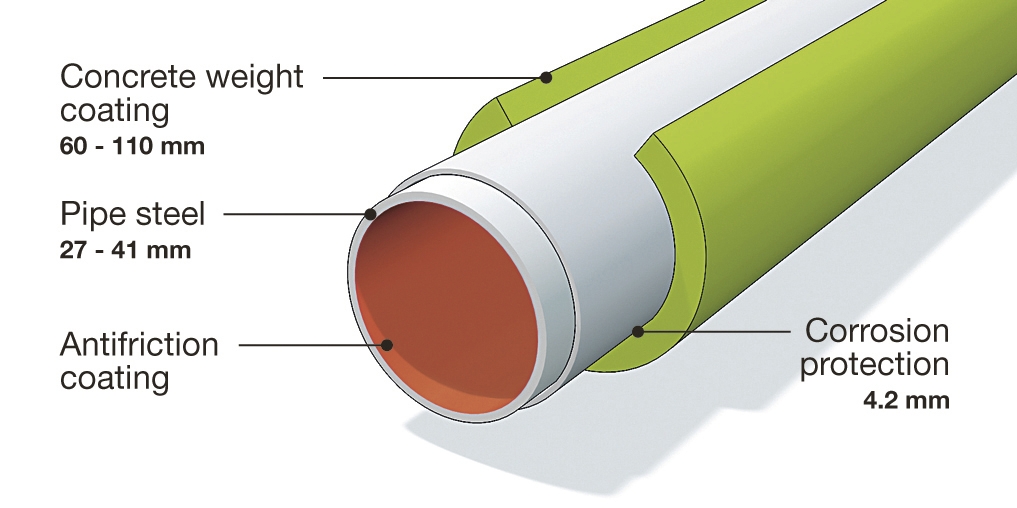

Concrete coated pipe types and dimensions
For to use in different circumstances in the sub-sea environment, the pipe could be in different dimensions, and available with different weight/thickness/density of concrete coatings, also can be processed with anti-corrosion coatings and insulation coatings.
Dimensions ranges for Concrete Coated Pipe
Mother pipe standards: API 5L Grade B to Grade 80. ISO 3183 Grade L245 to L555.
Diameter range: 6” to 60”
Pipe Thickness: SCH 20, SCH 40, SCH 80
Length: Up to 12 meters
Benefits of concrete coated pipe
• Mechanical protection and negative buoyancy
• Anti-corrosion protection
• Excellent Compatibility
• Long-term adhesion to steel
• Well suited to reel laying methods
• High resistance to cathodic disbondment
• And much more

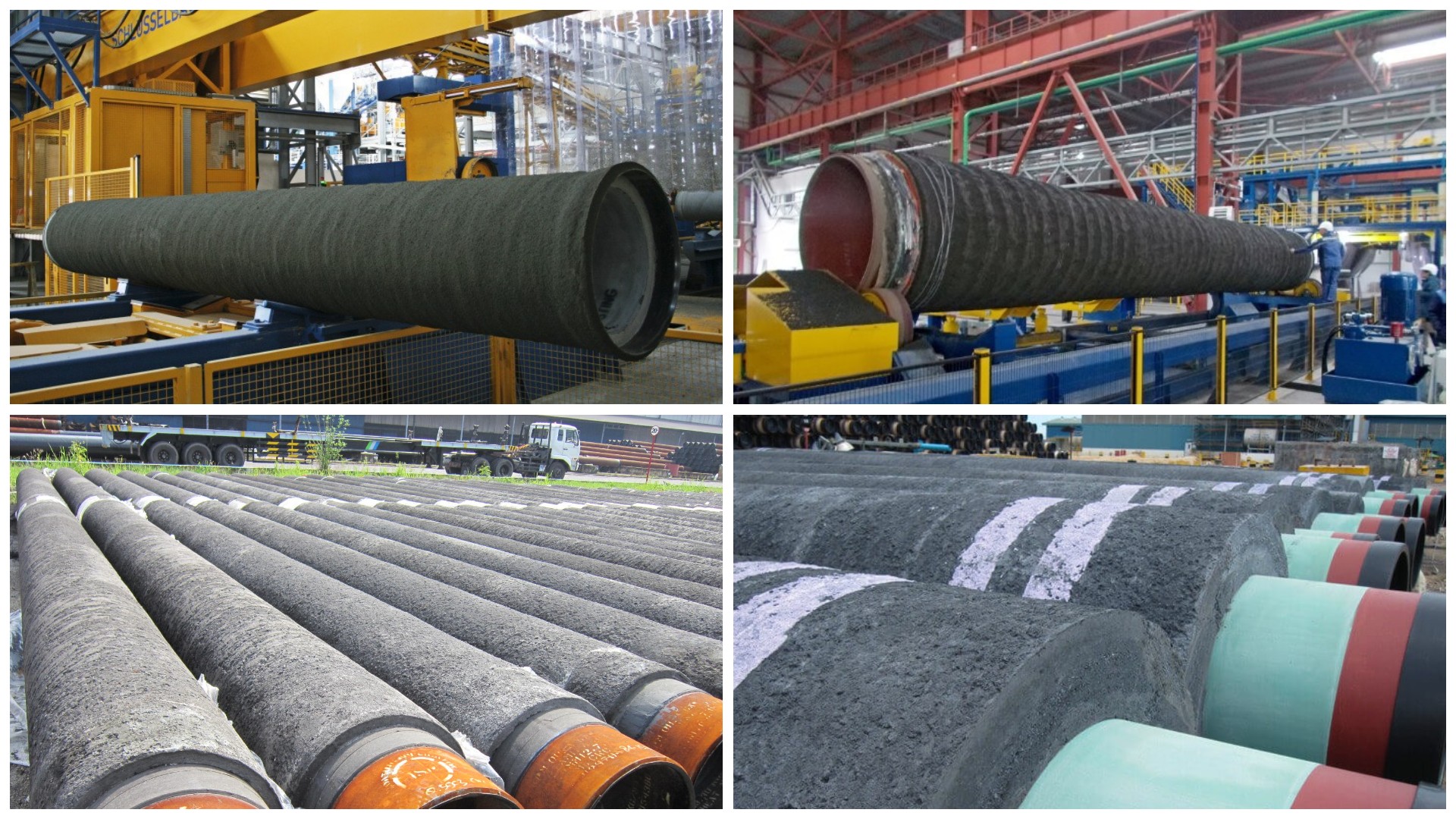

Our factory
Packing

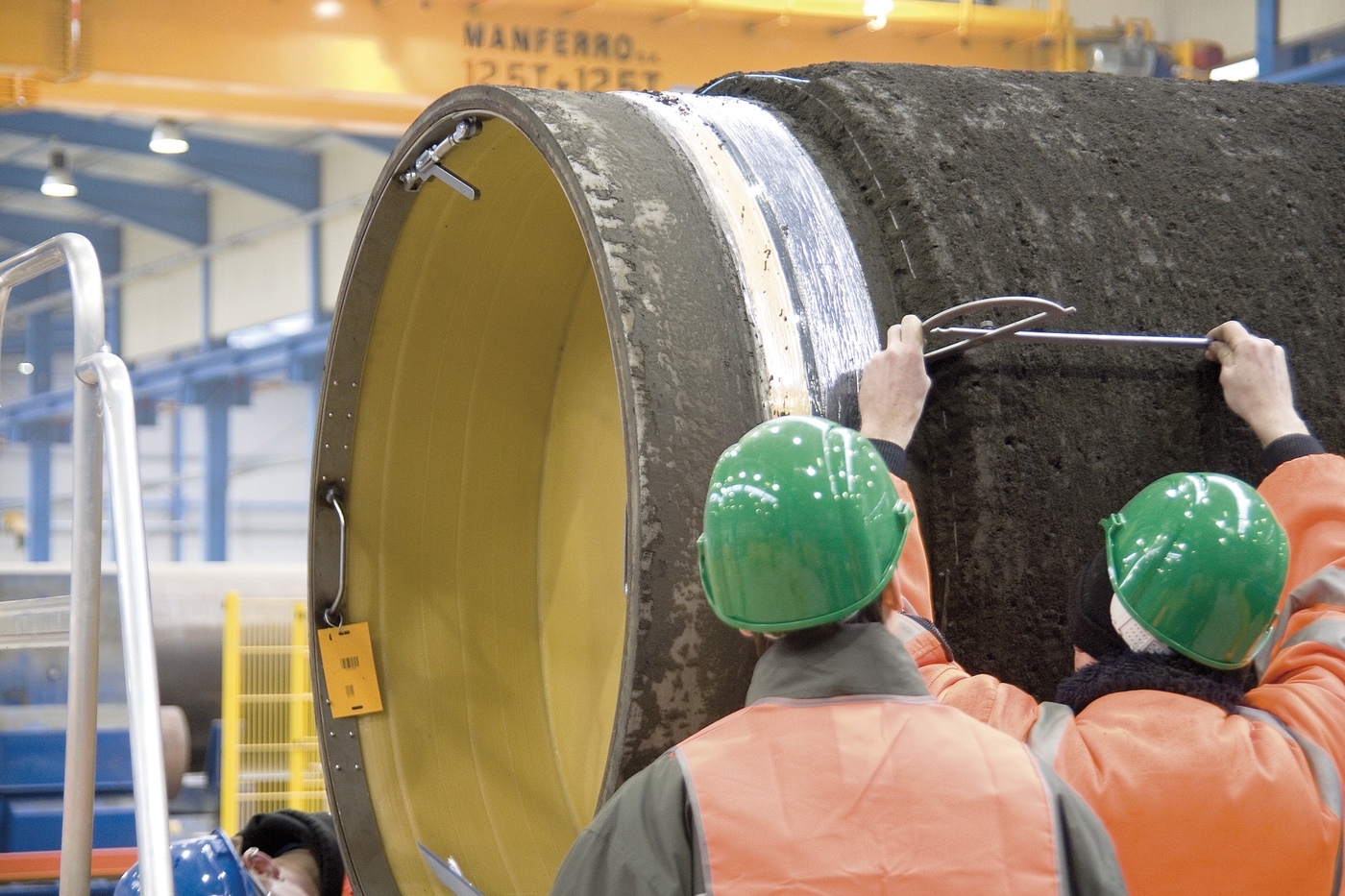

Manufacture Process
Equipment
